Description
氟塑料绝缘氟塑料护套电力电缆FF FF9F
技术规范
名称：
FF 氟塑料绝缘氟塑料护套电力电缆

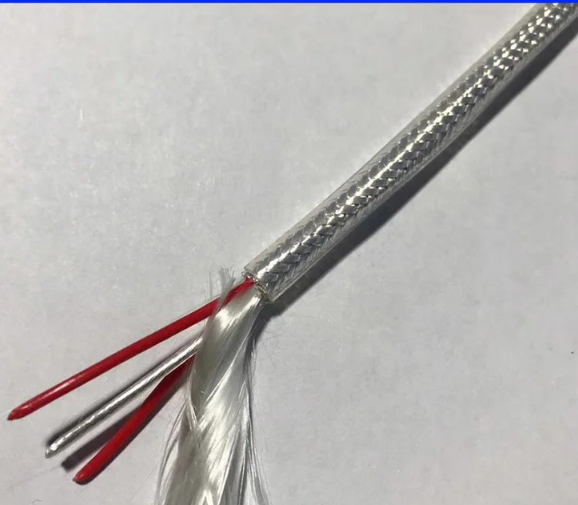

FF9F 氟塑料绝缘钢丝编织铠装氟塑料护套电力电缆
性能：
额定电压：U0/U为0.6/1kV
氟塑料电缆导体额定工作温度：正常运行时，200℃；
氟塑料电缆使用环境温度为：-65℃
氟塑料电缆的弯曲半径为电缆直径的15倍
0.6/1kV氟塑料电力电缆技术参数
导体 标称 截面
| 绝缘 标称 厚度
| 护套 计算 厚度 Mm
| FF 电缆 计算 外径 Mm
| FF9F 电缆 计算 外径 Mm
| ||||||
1类 导体
| 2类导体
| 5类 导体
| 1类 导体
| 2类导体
| 5类 导体
| 1类 导体
| 2类导体
| 5类 导体
| ||
2×0.75 | 0.35 | 0.6 | 0.6 | 0.6 | 4.5 | 4.7 | 4.8 | 6.1 | 6.4 | 6.5 |
2×1 | 0.35 | 0.6 | 0.6 | 0.6 | 4.8 | 5.0 | 5.1 | 6.5 | 6.7 | 6.8 |
2×1.5 | 0.40 | 0.6 | 0.6 | 0.6 | 5.5 | 5.7 | 5.8 | 7.2 | 7.4 | 7.5 |
2×2.5 | 0.40 | 0.6 | 0.6 | 0.6 | 6.4 | 6.6 | 6.8 | 8.0 | 8.2 | 8.5 |
2×4 | 0.50 | 0.7 | 0.7 | 0.7 | 7.7 | 8.0 | 8.4 | 9.4 | 9.7 | 10.0 |
2×6 | 0.50 | 0.7 | 0.7 | 0.7 | 8.8 | 9.2 | 9.4 | 10.5 | 10.9 | 11.1 |
2×10 | 0.60 | 0.7 | 0.8 | 0.8 | 10.9 | 11.5 | 11.7 | 13.0 | 13.6 | 13.8 |
2×16 | 0.60 | 0.8 | 0.8 | 0.8 | 12.8 | 13.4 | 14.0 | 14.9 | 15.5 | 16.1 |
3×0.75 | 0.35 | 0.6 | 0.6 | 0.6 | 4.7 | 5.0 | 5.1 | 6.4 | 6.6 | 6.8 |
3×1 | 0.35 | 0.6 | 0.6 | 0.6 | 5.1 | 5.3 | 5.4 | 6.8 | 7.0 | 7.1 |
3×1.5 | 0.40 | 0.6 | 0.6 | 0.6 | 5.9 | 6.1 | 6.2 | 7.6 | 7.8 | 7.9 |
3×2.5 | 0.40 | 0.6 | 0.6 | 0.6 | 6.8 | 7.0 | 7.2 | 8.5 | 8.7 | 8.9 |
3×4 | 0.50 | 0.7 | 0.7 | 0.7 | 8.3 | 8.6 | 8.9 | 9.9 | 10.3 | 10.6 |
3×6 | 0.50 | 0.7 | 0.7 | 0.7 | 9.4 | 9.8 | 10.1 | 11.1 | 11.5 | 11.8 |
3×10 | 0.60 | 0.8 | 0.8 | 0.8 | 11.7 | 12.3 | 12.6 | 13.8 | 14.4 | 14.7 |
3×16 | 0.60 | 0.8 | 0.8 | 0.8 | 13.7 | 14.4 | 15.1 | 15.8 | 16.5 | 17.2 |
4×1 | 0.35 | 0.6 | 0.6 | 0.6 | 5.6 | 5.8 | 6.0 | 7.3 | 7.5 | 7.6 |
4×1.5 | 0.40 | 0.6 | 0.6 | 0.6 | 6.5 | 6.7 | 6.8 | 8.1 | 8.4 | 8.5 |
4×2.5 | 0.40 | 0.7 | 0.7 | 0.7 | 7.5 | 7.7 | 8.0 | 9.2 | 9.4 | 9.7 |
