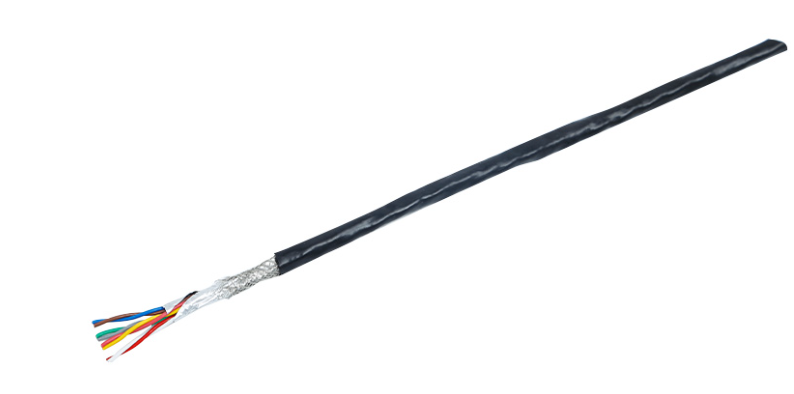

控制电缆KFYP-1*0.5
控制电缆KFYP-1*0.5额定电压：450/750V工作温度：-60~+105℃导体：镀锡铜丝绞合绝缘：铁氟龙FEP护套：弹性阻燃聚乙烯护套颜色：红、黄、蓝、白、黑、棕
Warning: Use of undefined constant tel - assumed 'tel' (this will throw an Error in a future version of PHP) in D:\wwwroot\huibangdianqi.com\cache\template\cn\huibangdianqi\oldmodules\define\#229.php on line 4
电 话：
Warning: Use of undefined constant tel - assumed 'tel' (this will throw an Error in a future version of PHP) in D:\wwwroot\huibangdianqi.com\cache\template\cn\huibangdianqi\oldmodules\define\#229.php on line 4
18855017299,13637026879
Warning: Use of undefined constant email - assumed 'email' (this will throw an Error in a future version of PHP) in D:\wwwroot\huibangdianqi.com\cache\template\cn\huibangdianqi\oldmodules\define\#229.php on line 5
邮 箱：
Warning: Use of undefined constant email - assumed 'email' (this will throw an Error in a future version of PHP) in D:\wwwroot\huibangdianqi.com\cache\template\cn\huibangdianqi\oldmodules\define\#229.php on line 5
823213582@qq.com
Warning: Use of undefined constant Description - assumed 'Description' (this will throw an Error in a future version of PHP) in D:\wwwroot\huibangdianqi.com\cache\cn\template\huibangdianqi\archive\#show_products.php on line 63
Description
控制电缆KFYP-1*0.5
额定电压：450/750V
工作温度：-60~+105℃

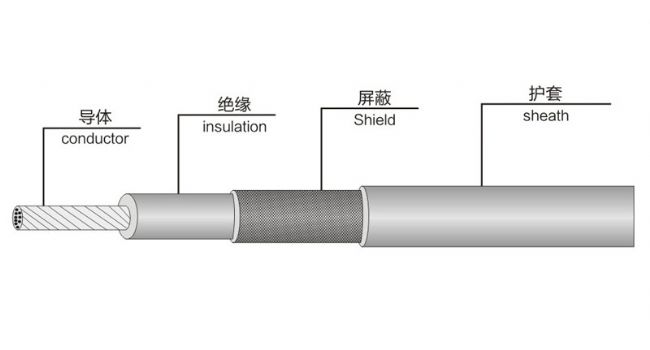

导体：镀锡铜丝绞合
绝缘：铁氟龙FEP
护套：弹性阻燃聚乙烯护套
颜色：红、黄、蓝、白、黑、棕、绿等。
产品性能：具有耐磨、防水、耐寒、耐油混合物、不易燃烧、不易老化、环保，在相对湿度在98%环境中可正常使用。
用途：控制电缆KFYP-1*0.5广泛用于实验室、高速公路监控设备线路安装，也用于照明灯具接线，马路高杆灯用线。
产品技术参数
| 标称截面 | 导体结构 | 绝缘平均厚度 | 护套平均厚度 | 芯数 | 电线平均外径 | 20℃时导体电阻***大值 |
| （mm2） | 根数/直径（mm） | （mm） | （mm） | 屏蔽型 | （Ω/km） | |
| 0.12 | 7/0.15 | 0.20 | 0.7 | 3 | 3.5 | 锡149/银128 |
| 7/0.15 | 0.20 | 0.7 | 4 | 3.8 | ||
| 7/0.15 | 0.20 | 0.7 | 5 | 4.0 | ||
| 7/0.15 | 0.20 | 0.7 | 6 | 4.2 | ||
| 7/0.15 | 0.20 | 0.7 | 7 | 4.5 | ||
| 7/0.15 | 0.20 | 0.7 | 8 | 4.6 | ||
| 0.20 | 7/0.20 | 0.20 | 0.7 | 4 | 4.1 | 锡90.4/银83.5 |
| 7/0.20 | 0.20 | 0.7 | 5 | 4.4 | ||
| 7/0.20 | 0.20 | 0.7 | 6 | 4.7 | ||
| 7/0.20 | 0.20 | 0.7 | 7 | 4.9 | ||
| 0.35 | 19/0.16 | 0.23 | 0.8 | 3 | 4.5 | 锡50.8银46.9 |
| 19/0.16 | 0.23 | 0.8 | 4 | 4.9 | ||
| 19/0.16 | 0.23 | 0.8 | 5 | 5.2 | ||
| 19/0.16 | 0.23 | 0.8 | 6 | 5.6 | ||
| 19/0.16 | 0.23 | 0.8 | 7 | 5.8 | ||
| 0.50 | 19/0.18 | 0.25 | 0.85 | 3 | 4.8 | 锡32.5/银30.1 |
| 19/0.18 | 0.25 | 0.85 | 4 | 5.2 | ||
| 19/0.18 | 0.25 | 0.85 | 5 | 5.6 | ||
| 19/0.18 | 0.25 | 0.85 | 6 | 6.2 | ||
| 19/0.18 | 0.25 | 0.85 | 7 | 6.5 |
Warning: Use of undefined constant view - assumed 'view' (this will throw an Error in a future version of PHP) in D:\wwwroot\huibangdianqi.com\cache\cn\template\huibangdianqi\archive\#show_products.php on line 91
浏览：
Warning: Use of undefined constant archivep - assumed 'archivep' (this will throw an Error in a future version of PHP) in D:\wwwroot\huibangdianqi.com\cache\cn\template\huibangdianqi\archive\#show_products.php on line 117
上一篇：控制电缆KFYR-3*1.5+1*0.2
Warning: Use of undefined constant archiven - assumed 'archiven' (this will throw an Error in a future version of PHP) in D:\wwwroot\huibangdianqi.com\cache\cn\template\huibangdianqi\archive\#show_products.php on line 123
下一篇：耐高温控制电缆KFG KFGR KFGRP
